TALOS brake caliper connection adapter with 25° or 40° angle, for quick release couplings with M10x1.0 connection thread, such as STÄUBLI SPH.03.7410 etc.
TALOS brake caliper connection adapter with 25° or 40° angle, for quick release couplings with M10x1.0 connection thread, such as STÄUBLI SPH.03.7410 etc.
Only 3 left!
TALOS – Brake Caliper Adapter ADPT.25.BK & ADPT.40.BK
If you expect absolute precision and perfection in routing your brake lines or quick disconnect couplings, these TALOS Performance adapters are indispensable. The models ADPT.25.BK and ADPT.40.BK are designed for maximum stability, precise alignment, and uncompromising racing performance.
Made from high-strength aluminum, CNC machined, and optimized for perfect fit, these adapters ensure clean brake line alignment and optimal routing – whether on the street or the racetrack.
Why these adapters are a true performance upgrade
Precision CNC Manufacturing
Each adapter is machined from high-quality aluminum to guarantee maximum stability, dimensional accuracy, and durability.
Angle Variants >>> 25° or 40°
-
ADPT.25.BK: 25° angle, ...flatter angle
- ADPT.40.BK: 40° angle, ...steeper angle
Both models provide perfect brake line routing and avoid kinks or tension in the line during compression.
Precise Connection (M10x1.0)
The M10x1.0 internal threaded connection ensures compatibility with common quick release couplings, e.g., STÄUBLI SPH 03.7410 series or couplings modified by us from ACCOSSATO, HEL, etc., which originally have a 3/8 - 24" UNF connection.
Maximum Stability
The thoughtful design ensures a secure connection of the components being connected – even under high loads.
Optimized for Best Performance
Whether for racing modifications, performance bikes, or high-end brake upgrades – these adapters deliver reliability for brake line and/or quick connector connections at a professional level.

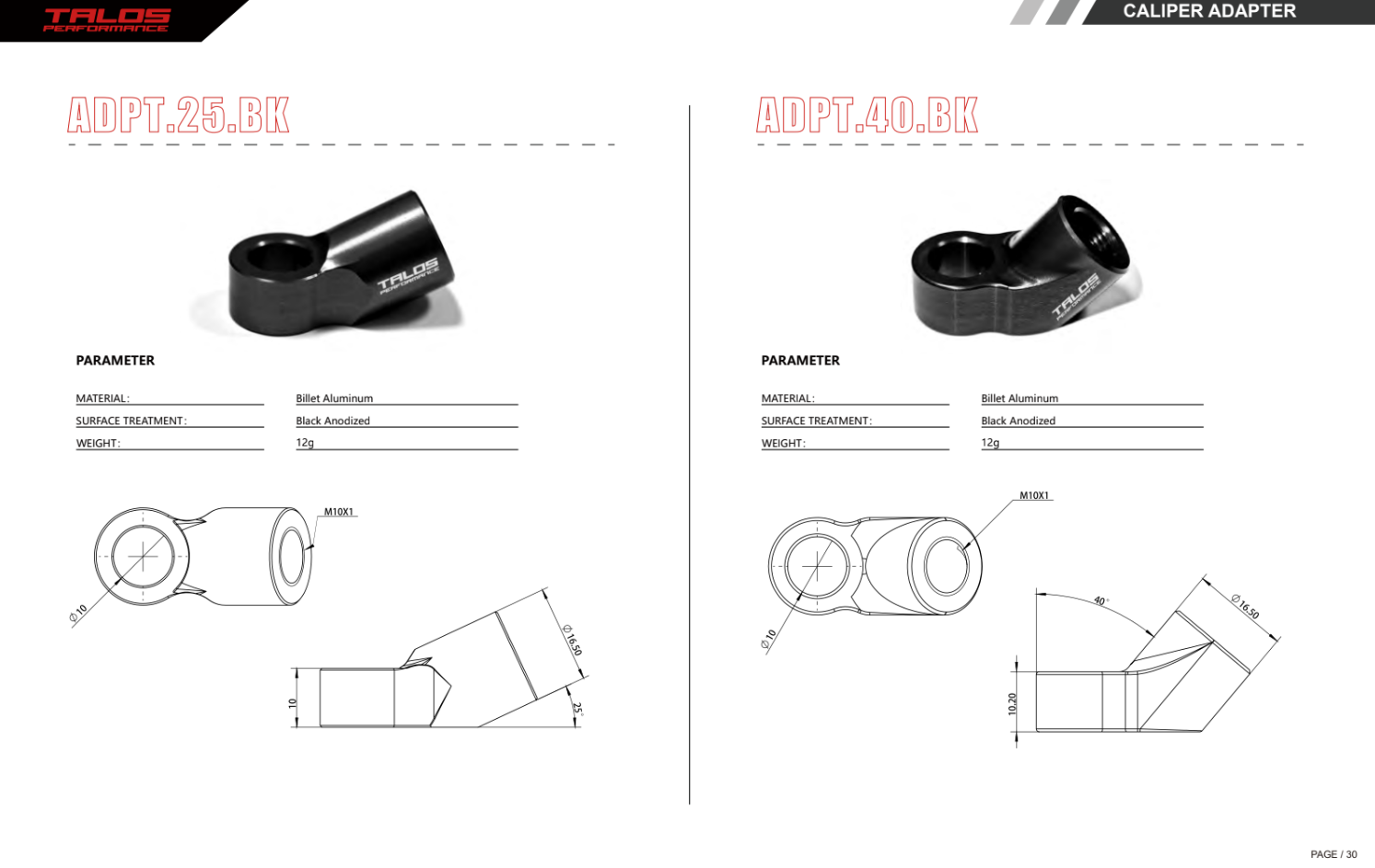

📐 Technical Specifications

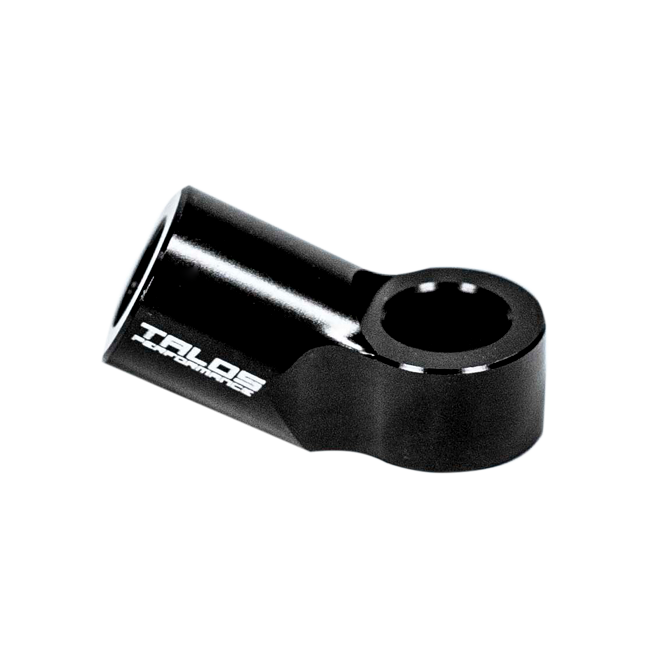

ADPT.25.BK
-
Angle: 25°
-
Connection Thread: M10x1.0 (internal thread)
for quick release couplings, e.g., STÄUBLI SPH 03.7410 series or couplings modified by us from Accossato, HEL, etc., which originally have a 3/8 - 24" UNF connection. -
Outer Diameter: Ø16.5 mm
-
Hollow Screw Passage: Ø10 mm
-
Construction Height: 10 mm
-
Color: black anodized (BK)

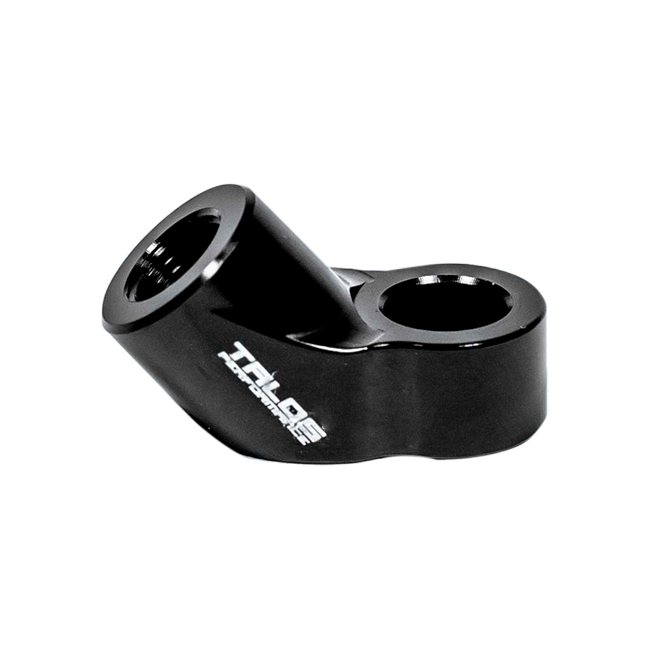

ADPT.40.BK
-
Angle: 40°
-
Connection thread: M10x1.0 (internal thread)
for Quick Release couplings e.g. STÄUBLI SPH 03.7410 series or couplings modified by us from Accossato, HEL, etc. which originally have a 3/8 - 24" UNF connection. -
Outer diameter: Ø16.5 mm
-
Hollow screw passage: Ø10 mm
-
Construction height: 10.20 mm
-
Color: black anodized (BK)
Ideal for riders who…
-
want to optimize the brake line connection
-
need clean line paths without tension
-
prefer high-quality racing components
-
value robust & precisely manufactured adapters
🛒 Upgrade your braking system...
Precision, stability, and quality – all in one adapter.
👉 Order now and perfectly optimize your braking system!
