Rear 84mm brake caliper bracket for Yamaha YZF-R1/M RN32, RN49 & RN65. Racing brake anchor for quick rear-wheel changes on the Yamaha R1. This rear brake caliper bracket with an 84mm mount was developed for the Yamaha YZF-R1 and YZF-R1M of the RN32, RN49 and RN65 model lines. It fits models from 2015 to 2026 and is the ideal solution for riders who want to optimize their R1 for trackdays, race track use, and fast wheel changes.

When used with a suitable aftermarket brake caliper, the Hesterberg-Cad/Cam brake anchor makes it much easier to install and remove the rear wheel. Especially during tire changes in the paddock or in the pit lane, the system ensures a controlled, clean, and significantly more efficient process.

Developed for track use

On a Yamaha R1 at the race track, it’s not just engine power that counts. Ease of maintenance, fast access to the rear wheel, and a reliable braking component solution make the difference in everyday trackbike use.

The Hesterberg-Cad/Cam quick-change brake caliper bracket helps simplify wheel changes and avoid typical issues during disassembly. By connecting the brake anchor to the chain adjuster, the brake caliper remains securely positioned. This prevents the caliper from dropping uncontrollably.

Your benefits at a glance

• Compatible with Yamaha YZF-R1 and YZF-R1M from 2015 to 2026
• Suitable for RN32, RN49 and RN65 models
• 84mm mount for matching aftermarket-Brake Calipers
• CNC-machined from high-quality aluminum 7075-T6
• Makes it easier to install and remove the rear wheel
• Ideal for trackday, racing, and race-track conversions
• Can be connected to the chain adjuster
• Reduces the risk of a dropped brake caliper
• A drawing of the drilling positions is included

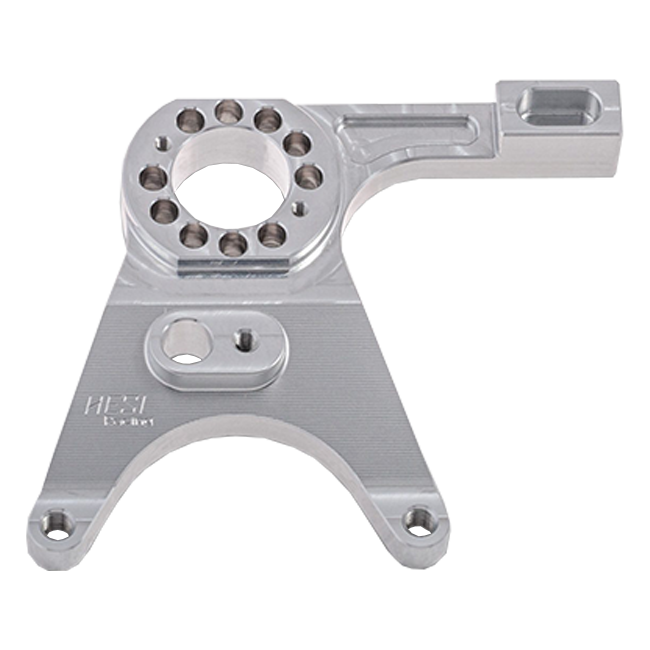

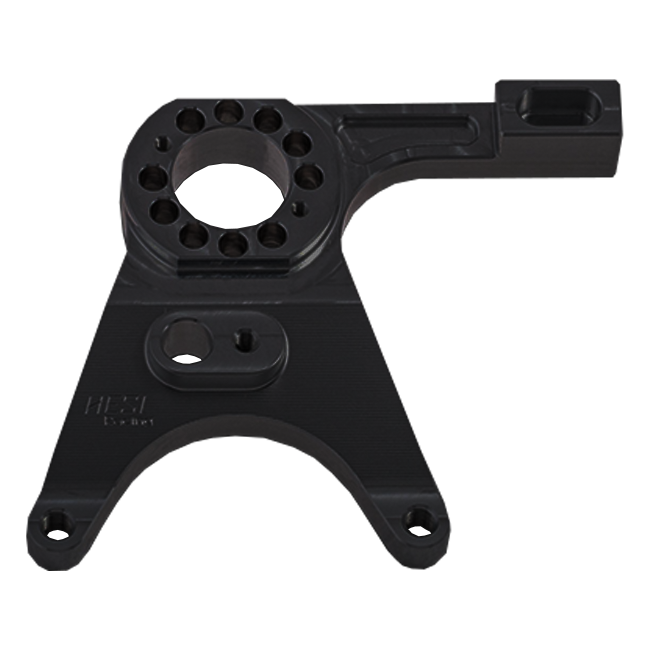

• Available in natural finish or black anodized

Compatible with 84mm brake calipers

Brake calipers with a 84mm mounting-hole spacing can be used. With cheaper cast brake calipers, clearance issues may occur around the wheel hub area due to larger manufacturing tolerances. In that case, additional machining may be required.

A CNC-machined brake caliper is recommended, for example a suitable HEL caliper, as it is more compact in design and, based on experience, delivers an especially clean solution. When using forged wheels, any suitable brake caliper is possible without any further modifications.

Why aftermarket instead of the original brake caliper?

This quick-change system was not developed simply to reposition the brake caliper differently. The key advantage lies in its practical benefit when changing the rear wheel.

With the original brake caliper, during removal there is often the risk that a brake pad shifts or falls out. That is exactly what costs time and turns a quick tire change into an unnecessarily long screw-in operation. With a suitable aftermarket brake caliper, this risk can be reduced significantly.

The result: a more relaxed wheel change, fewer sources of error, and a setup that fits better for track use.

Important assembly notes

For installation, threaded holes must be created in the chain adjuster. A sketch with the drilling positions is included. Installation should be carried out by qualified personnel.

When using the original Wheels / Rims, the dust shield ring behind the brake disc must be machined. In addition, a new brake line is required.

Usage notes

• No certificate/approval available
• For track-use only / for racing circuit use
• Not approved for public road traffic
• New brake line required
• When using the original Wheels / Rims, the dust shield ring behind the brake disc must be machined
• Assembly by qualified personnel recommended

Prepare your Yamaha R1 for fast wheel changes

With the Hesterberg-Cad/Cam brake caliper mount for the rear 84mm, your Yamaha YZF-R1 or R1M gets a functional racing upgrade for more efficiency during tire changes, clean work steps, and a professional trackbike setup.
