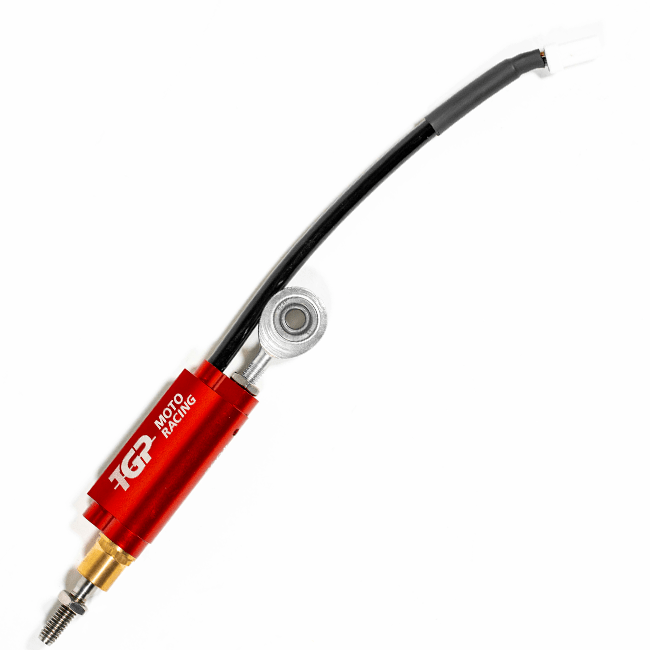

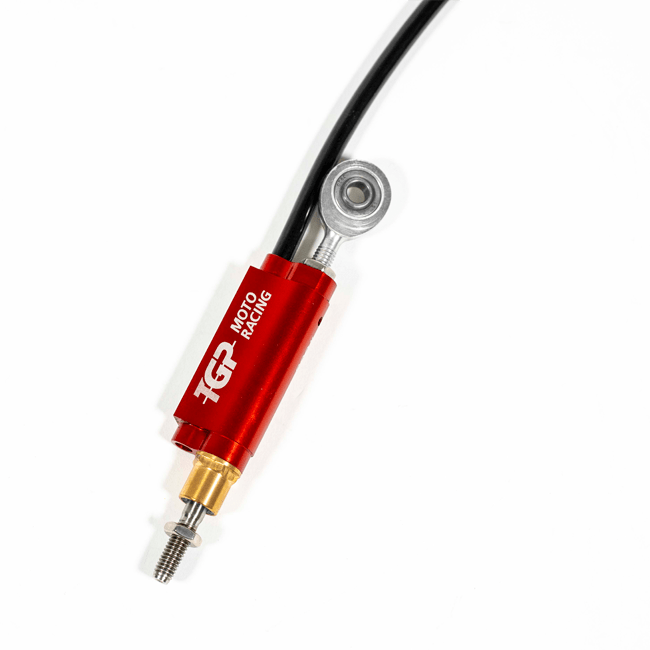

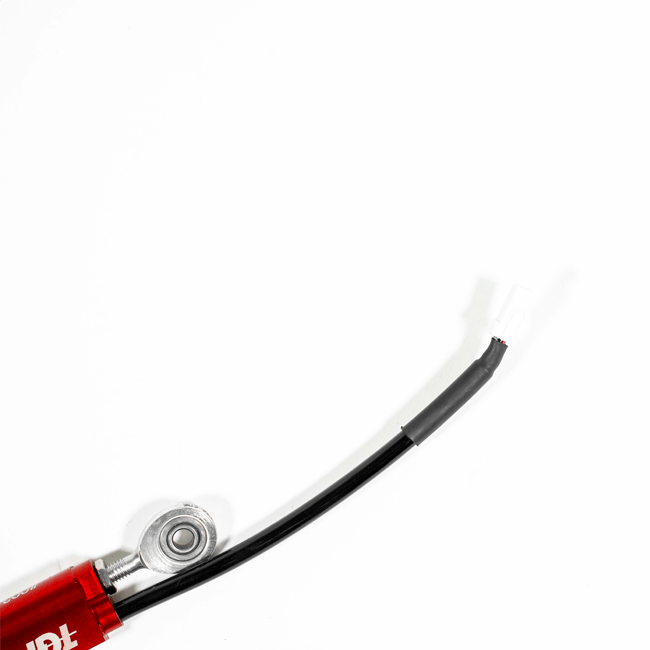

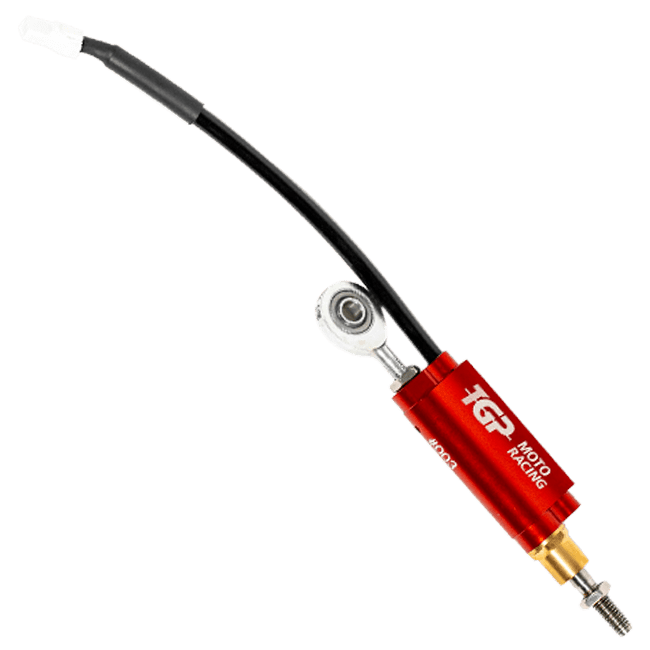

FSS Fast Shift Sensor – TGP MotoRacing – Ducati Panigale V4/S/R (18–24)
Item number: FSS-DUV4

Maximum performance for your Ducati: The FSS Fast Shift Sensor (shift sensor) from MCT Lohmann, exclusively at TGP MotoRacing, is the most precise and durable solution for your quickshifter system.

Thanks to its extremely robust V2A shift rod with bronze bushing, it operates reliably over the long term – even under high temperatures where original sensors often fail.

With a width of only 14 mm, the FSS is one of the most compact quickshifter sensors on the market. The CNC-milled housing weighing just 20 g underscores the uncompromising racing technology of this system.

Technical Highlights

• Shift direction freely selectable (pull or push)

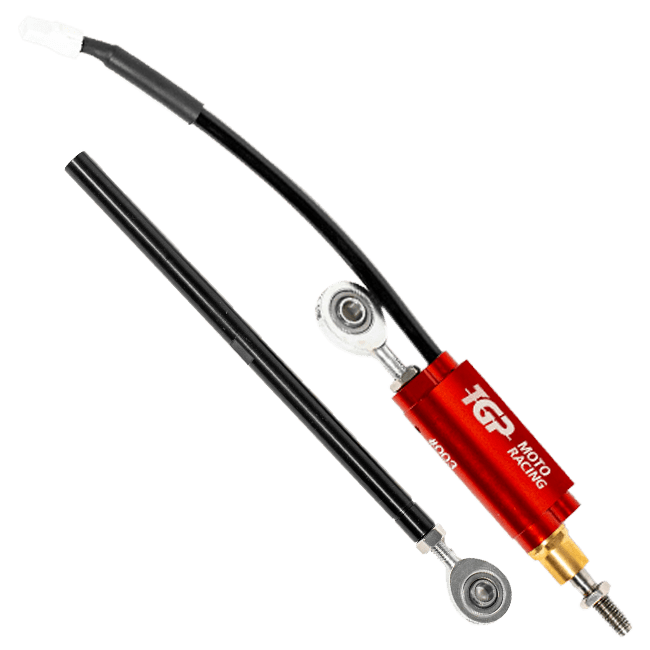

  → Two matching connection cables are included

• Micro-fine sensitivity for precise shifting operations

• Output signal adjustable as normally open or normally closed (open collector)

• Reprogrammable Hall sensor for maximum flexibility

• Pre-tensioned travel of ± 3 mm / up to ± 25 kg

• Absolutely heat-resistant – operates reliably even under extreme engine heat

• Fully disassemblable – can usually be repaired after crashes

• Includes high-quality V2A shift rod with bronze bushing

• Connections: M6 external / M6 internal (BMW: M6 external, M8 internal)

Technical Data

• Width: only 14 mm

• Weight: approx. 20 g

• Item number: FSS-DUV4

• Vehicle compatibility: Ducati Panigale V4 / V4S / V4R (model years 2018–2024)

Your advantages at a glance

• Extremely precise shifting operations

• Very compact design for tight space conditions

• Significantly more durable than original Ducati sensors

• Fully heat-resistant → operates reliably even in racing conditions

• Absolute game changer compared to OEM and aftermarket sensors

With the FSS Fast Shift Sensor, you elevate the shifting performance of your Ducati Panigale V4/S/R (18–24) to a completely new level – with maximum precision, minimal weight, and absolute reliability.

Order the FSS Fast Shift Sensor TGP MotoRacing (FSS-DUV4) now and experience lightning-fast, precise gear shifts on the street or track!
